Build Your Own Wind Turbines With Our Parts

PMA Mounting Bracket Kits And Accessories

A simple way to mount most any alternator on
a 1.5" water pipe used as a wind turbine mast.

Fits any alternator or PMA - Adjustable slots can travel 5.5" to 7.75" - Fits most Delco, Ford and big truck type alternators. Can accommodate alternators or PMAs with up to 9" bolt hole center spans if brackets are welded together. Bracket has over 12 mounting holes on the
back side to accommodate any tails or wiring mounts.


Fixed bracket for PMA's with 6 5/8" bolt centers.

Fits Delco 10si, 12si and many other "si" models.
  • Two long mounting bolts and spacers
  •
  • Special locknuts that can never vibrate loose.
  • Wire lock, hanger and mounting hardware (not shown)
  •
  • Pipe hanger fits 1.5" steel water pipe
  •
  • and allows for easy turning.
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  • CLICK HERE TO SEE THE: NEW ROLLER BRACKETS

'WTM' series mounts and dual tails"
(These brackets are bare metal and require painting)

Fixed bracket for PMA's with 6 5/8" bolt centers.
Fits Delco 10si, 12si and many other "si" models.
Two long mounting bolts and spacers
Special locknuts that can never vibrate loose.
Wire lock, hanger and mounting hardware (not shown)
Pipe hanger fits 1.5" steel water pipe and allows for easy turning.


#WTMB- Mounting Rotator Bracket Kit ONLY (No Tail)

$39.95 + $19.90 S&H fee each.




#WTMT1- Mounting Rotator Bracket Kit ONLY (No Tail)

$49.95 + $19.90 S&H fee each.

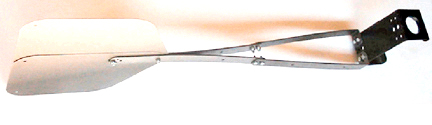

#WTMT2 - Mounting Kit WITH Dual Tail Complete



$139.95 + $22.90 S&H fee each.



Includes spacers and bolts at fit our SCS
series PMA's and many other Delco models.

ROLLER KITS ONLY - See video's

#RB15 - Roller wheel kit for 1.5" steel water pipe - Comes with two wheels with 4
ball bearings installed, pipe clamp, roller disc plate for 1.5" water pipe and hardware.

- Buy ONE set for only $55.95 Plus $22.98 S&H


#RB25 - Roller wheel kit for 2.5" ateel water pipe - Comes with two wheels with 4
ball bearings installed, pipe clamp, roller disc plate for 1.5" water pipe and hardware.

- Buy ONE set for only $55.95 Plus $22.98 S&H

http://youtu.be/U1YhMKPLRD0?list=UUpaE4wO46VJafWecf_BTKuw

1.5" Complete Mounting bracket and roller for 2.5" water pipe for all dual core PMA's

#BKR15 - Roller bracket kit for 1.5" steel water pipe - Comes with heavy duty bracket for dual core PMA's two wheels with 4
ball bearings installed, pipe clamp, roller plate for 2.5" pipe and hardware.
- Buy ONE set for only $139.95 Plus $24.98 S&H


2.5" Complete Mounting bracket and roller for 2.5" water pipe for all dual core PMA's

#BKR25 - Roller bracket kit for 2.5" steel water pipe - Comes with heavy duty bracket for dual core PMA's two wheels with 4
ball bearings installed, pipe clamp, roller plate for 2.5" pipe and hardware.
- Buy ONE set for only $139.95 Plus $24.98 S&H

Shows bracket on dual core PMA
Tail bars, hub, pipe, pma and blades are not included. Photos shows how it mounts.

AIR ANCHOR© TAILS for with 4 bars for Ultra Core and Dual PMA's

#LT4 - Set of four 28.5" long tail bars with special alumium tail 36"x 11.5" with adjustable flaps - flight fins®


- Buy ONE complete set for only $169.95 Plus $28.98 S&H (36"x 11.5")

- Buy ONE aluminum tail only $79.95 Plus $28.98 S&H (36"x 11.5")


See how Fins work CLICK HERE - https://youtu.be/Y0qzuLgF72M


Large tail for with 2 bars for Ultra Core and Dual PMA's

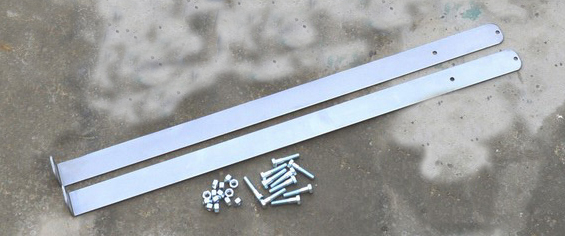

#TBS2 - Pair of extra long 42" tail bars - Fits all tails (tail not included)


- Buy ONE pair for only $49.95 Plus $24.98 S&H




Furling Bracket (silencer)

Furling bracket helps slow down turbines in high winds.

Adjustable slot for furl speed selection.


#HDFWR -Only $29.95 plus $16.85 S&H fee -


OTHER LINKS

Marine coat- your brackets - Link here

Click here for Wind Turbine blades


No Slip Rings - Our advice on slip rings is to use heavy rubber coated welding cable and don't worry about twisted wire. Twisted wires in the pole are an overrated problem in small wind turbines. Heavy rubber welding cable tends to simply unwind when it is under tension and the wind turbine head favors turning in the opposite direction to effect unwinding. Welding cable has also magical qualities when it comes to taking continuous twisting and has incredible abrasion resistance when rubbing inside the pipe. Welding cable will last for about 50 years (Not even slip rings will last 50 years)
NO OTHER TYPE OF WIRE HAS ALL THESE QUALITIES EXCEPT WELDING cable!

Note: A small dab of grease must be used on the welding cables to guide them both through the wire clamp. After they are greased the iron will "GLAZE' and not require any further lubrication.

In all our testing some slip rings eventually failed and required maintenance while over 100 small test turbines equipped with rubber welding cable operated with a 100% dependability rate for over 24 years now and counting.





THE GREAT CONE CONTROVERSY

Do cones help? - OR
Are they just for beautification?

The making of conical myths.

To learn more Click Here
