3500 Watt Generator OUR MOST POWERFUL EVER!
Buy One Manta III A.C. brushless generator
(PMG3PH) - Now For $299.95 ea. + $49.90 S&H

Our best axial brushless generator - 3 phase for long distance power transmission.
(Requires a 300 Amp rated 3 phase bridge rectifier to output D.C. power)
THIS HAS BEEN ALTERED TO BE A GENERATOR ONLY - THIS IS NOT A MOTOR!

You will need DC for charging a battery

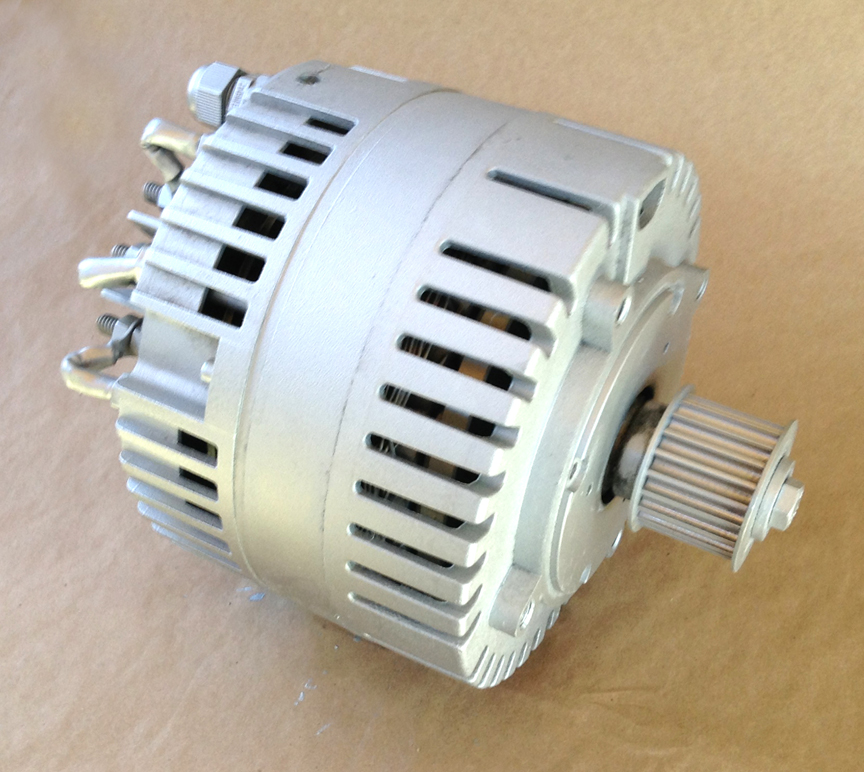

Manta 3 / Three phase A.C. Generator Specifications:


7.91" diameter / 7.75" length
24MM" shaft with 3/16 or 1/4" keyway by 1" long with cog belt drive pulley
12V to 48V (4100 RPM MAX -
A put-up and forget design! Expect decades of dependable service life.
Rain, ice and weather proof electronics.
Comes with cog drive but can be removed for pulley or chain drive.
3500 Watts continuous duty at 48 volts at 3600 to 4100 RPM
3000 Watts continuous duty at 36 volts at 2800 to 3300 RPM
2000 Watts continuous duty at 24 volts at 2100 to 2400 RPM
1000 Watts continuous duty at 12 volts at 1400 to 1900 RPM
Works for both CW or CCW rotations
Epoxy/Lam rotor efficiency = 94% (Brushed motors convert more electricity into usable horsepower)
Weighs 33bs. / Dimensions - 8"X 9"X 9"


 Three phase to DC rectifiers sold here

These turn the 3 phase AC power of the Manta 3 into DC power which a battery needs



(THIS MODEL CAN NOT BE USED AS A MOTOR! For AC power generation only!) THIS HAS BEEN ALTERED TO BE A GENERATOR ONLY - THIS IS NOT A MOTOR!


Manta 3 / 3500 Watt Generator
OUR MOST POWERFUL EVER!
NOT A MOTOR BUT GENERATOR!

Buy One Manta 3 model #M3500 A.C. brushless generator
and get decades of very dependable electrical power generator.

#M-3500Now For $299.95 ea. + $79.90 S&H


3500 Watt / 200 Amp / 48 volt Electric
generator for home-power battery charging.
OUR MOST POWERFUL AXIAL PMG EVER!

3500 Watts continuous duty at 48 volts at 3600 to 4100 RPM
3000 Watts continuous duty at 36 volts at 2800 to 3300 RPM
2000 Watts continuous duty at 24 volts at 2100 to 2400 RPM
1000 Watts continuous duty at 12 volts at 1400 to 1900 RPM


You will need DC for charging a battery

 Three phase to DC rectifiers sold here

These turn the 3 phase AC power of the Manta 3 into DC power which a battery needs


A.C. brushless generator
. Great for 48, 36 and 24 volt battery charging.
Dual sided coil axial brush-less generator - 3 phase for long distance power transmission.

(Requires one 300 Amp rated 3 phase bridge rectifier's run in parallel to make output into D.C. power -  Bridge rectifier's.
NOT SUPPLIED)
THIS HAS BEEN ALTERED TO BE A GENERATOR ONLY - THIS IS NOT A MOTOR!


M-3500 / Three phase A.C. Generator
  • Specifications:
  • 9.43" diameter (with cover) / 7.75" length 24MM" shaft
    3/16 or 1/4" key-way by 1" long with bare shaft (no key)
    12V to 48V (4600 RPM MAX FOR 100% DUTY) -
    A put-up and forget design!
    Neo #50 Magnets
    24MM" shaft with 3/16 or 1/4" keyway by 1" long with cog belt drive pulley
    12V to 48V (4100 RPM MAX -
    A put-up and forget design! Expect decades of dependable service life.
    Rain, ice and weather proof electronics.
    Comes with cog drive but can be removed for pulley or chain drive.
    Works for both CW or CCW rotations
    Epoxy/Lam rotor efficiency = 94% (Brushed motors convert more electricity into usable horsepower)
    Weighs 33 lbs. / Box Dimensions - 12"X 12"X 12"

    (THIS MODEL CAN NOT BE USED AS A MOTOR! For AC power generation only!)
  • THIS HAS BEEN ALTERED TO BE A GENERATOR ONLY - THIS IS NOT A MOTOR!
  • Expect decades of dependable service life.
  • Rain, ice and weather proof electronics.
  • Works for both CW or CCW rotations -
    Epoxy/Lam/wire rotor efficiency = 95% - 49 lbs.
  • Dimensions - 16"X 10"X 12"
  • THIS MODEL CAN-NOT BE USED AS A MOTOR! For AC power power generation only!
