Continuous Duty Relay Switches Available:
(These are not common automotive relays that are only used for a few seconds at a time for starting a car. These can stay on for days at a time and not burn out. Specially wound coil called "continuous duty")

The "CDS" series continuous duty relays are sold in

non-grounded insulated cases (lightning proof).

Can be operated at 100% duty cycle conducting

loads up to 440 amps. These are not like standard

relays that can only run for short durations before

burning up but rather true industrial duty models

that are not bothered by heat, dirt or continuous

ON time! Heavy duty copper LUGS complimented

by heavy circuit contacts that can handle

millions of cycles at very high amp loads without

fusing together and sticking! --





CDS SERI
ES / 440 Amp Rated -
Continuous Duty Relay Switches Available: (These are not common automotive relays that are only used for a few seconds at a time for starting a car. These can stay on for days at a time and not burn out. Specially wound coil called "continuous duty")




Lifetime warranty against contact failure

VERY ULTRA HIGH QUALITY UNITS!
Case insulated from ground unlike cheaper units.
Activation power input is only 100ma for both models!


We sell only serious relays for electricians
serious about extreme dependability!
These Are True Continuous Duty Units!
These relays will not burn out even if you
keep them turned on for weeks at a time!
(Specially wound coils minimalize any over heating)



#CDSSILVER12 - 12 Volt Relay - Only $49.95
plus $21.90 S&H fee


#CDSSILVER24 - 24 Volt Relay - Only $49.95
plus $21.90 S&H fee


#CDSSILVER8 - 48 Volt Relay - Only $59.95
plus $21.90 S&H fee
(Hard to make 48 volt - Costs bit more to build)



HEAVY DUTY MODELS:
(These are not common automotive relays that are only used for a few seconds at a time for starting a car. These can stay on for days at a time and not burn out. Specially wound coil called "continuous duty")

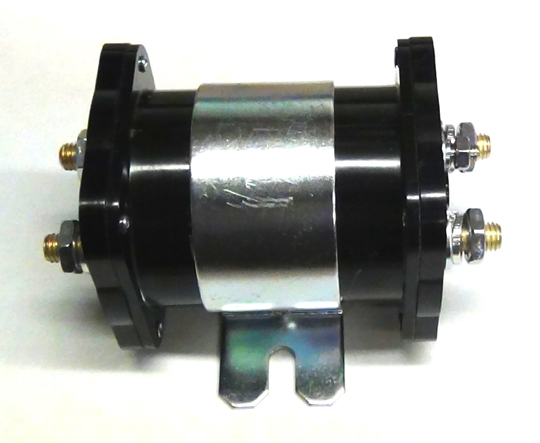

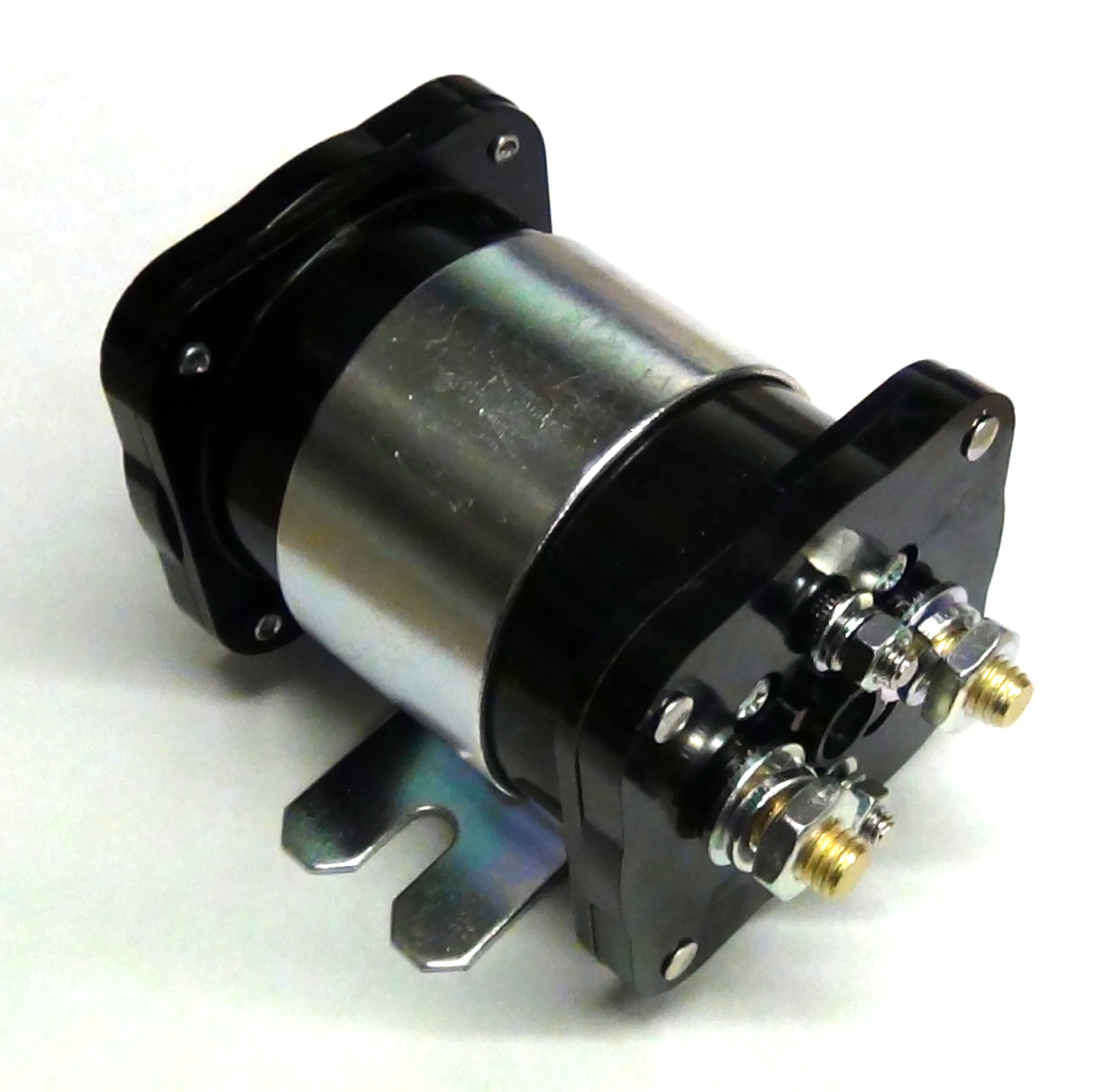

CDS 500 Amp Series - with 700 Amp Surge

SINGLE SIDED


#CDS12500ST - 12 Volt Relay - Only $69.95
plus $21.50 S&H fee



#CDS24500ST - 24 Volt Relay - Only $69.95
plus $21.50 S&H fee


DOUBLE SIDED


#CDS12500DT - 12 Volt Relay - Only $99.95
plus $22.50 S&H fee


#CDS24500DT - 24 Volt Relay - Only $99.95
plus $22.50 S&H fee





Heavy copper studs can handle millions of cycles at very high amp loads without fusing together or sticking! (Lifetime Warranty)
"Electro mechanical units like this are impervious to lighting, SME and other stray or static electrical discharges"

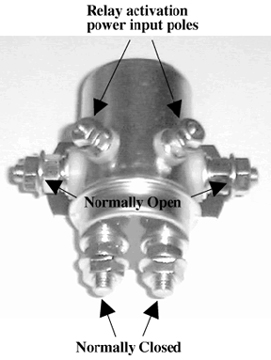

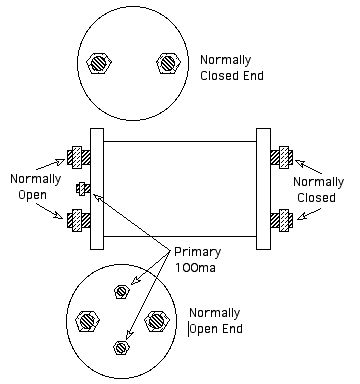

Active Mode-
For operating any diversion load up to 440 amps!
(By using the 'Normally Open' lugs)

Passive Mode- (Handles high voltage wind turbines too)
For operating 'Cut-Off' to any power coming into your battery!
(By using the 'Normally Closed' lugs)

15 year warranty on relay - If you can burn it out we will replace it free!!! Full 440 amps at 12 volts / 210 amps at 24 volts / 100 amps at 48 volts





Questions??? For Fast Email Service Email Us Please.

For FAST Technical Support Please Email Us Now!
We do not have a voice phone number or a receptionist in order to keep your prices low.
We have the WORLD's lowest prices on wind turbines and accessories and sacrifices have
to be made in order to accomplish this goal! Therefore we are a 100% web based company.
